Investigating the Ability of Lysinibacillus spp. to Detoxify Heavy Metals Using Bibliometric and Network Analysis

Introduction

The pervasive issue of heavy metal contamination has emerged as a significant concern due to its detrimental impacts on animals, plants, and humans, as well as its disruptive effects on ecosystems.¹ Heavy metals are characterized by their non-biodegradable and persistent nature, which exacerbates environmental degradation and poses serious health risks.² Although HMs and other metalloids occur naturally in the Earth’s crust, their recalcitrant properties hinder degradation processes. Bioaccumulation from diverse sources, including air, soil, and water, allows these substances to penetrate biota and move upward through food webs over time.³ Natural phenomena and, increasingly, anthropogenic activities introduce HMs into the environment. Urbanization, industrialization, and intensive agriculture frequently contaminate soils with cadmium (Cd), chromium (Cr), and related pollutants.⁴ Documented soil pollution cases involving these metals span Malaysia.^5-7 Even at low concentrations, HMs can disrupt metabolic functions; at higher levels, they interfere with functional groups and essential metal ions in biological systems. By modifying active sites on biomolecules, they become toxic to both microbes and higher organisms. Agricultural runoff compounds the problem by delivering mercury and other toxins to aquatic ecosystems, ultimately threatening consumers of contaminated fish.⁸ In animals, chronic cadmium exposure damages renal proximal tubules and may induce osteoporosis by disturbing calcium metabolism.^{9, 10} Conventional physicochemical remediation techniques, though rapid and effective, are costly, energy-intensive, generate toxic sludge, and are impractical for large areas.¹¹ Bioremediation offers a more economical and eco-friendly alternative; microorganisms can immobilize, transform, or remove non-biodegradable contaminants.¹² Among these microbes, Lysinibacillus species exhibit exceptional tolerance, adaptability, and metal binding capacity, making them promising agents for HM clean-up.^{13, 14} Scientific interest in Lysinibacillus-mediated detoxification has risen sharply since the mid-2010s,¹⁵ yet few studies have systematically mapped the global research landscape. Bibliometric analysis fills this gap by revealing patterns, influential works, and research fronts.¹⁶ Accordingly, the present study combines Dimensions AI data with VOSviewer network visualizations to chart the evolution and structure of scholarship on Lysinibacillus and heavy-metal bioremediation.^{17, 18} Recent advances in systems biology and computational tools, such as Cytoscape, have enabled visualization and analysis of complex gene-microbe interaction networks for consortia development.¹⁹ These analyses are essential for pinpointing key functional genes, assessing modular structures within networks, and guiding the design of synthetic microbial consortia for targeted remediation.^{20, 21} This study aims to provide a comprehensive understanding of the role of Lysinibacillus species in heavy metal bioremediation by integrating bibliometric and network-based approaches. The objectives are to analyze global research trends, influential contributors, and collaboration patterns through bibliometric mapping; to identify major research themes and emerging hotspots associated with Lysinibacillus mediated remediation; to construct and evaluate a curated gene species interaction network in Cytoscape for identifying key functional genes, central microbial species, and important network clusters; to highlight the bioremediation potential of Lysinibacillus sphaericus and related taxa based on their genetic attributes and network positioning; and to use these insights to inform the development of synthetic microbial consortia and outline future research directions in heavy-metal bioremediation.

Materials and Methods

Data Collection

A thorough literature review was performed utilizing a prominent scientific database such as Dimension AI. This review encompassed a variety of publications such as articles, reviews, conference proceedings, and other scholarly works that concentrate on Lysinibacillus species as a strong candidate for heavy metal bioremediation. The search utilized keywords such as “Lysinibacillus and heavy metal,” “Lysinibacillus species,” “Heavy metal Bioremediation,” “environmental upgradation,” “ecosystem restoration,” and other related terms. The scope of the search was restricted to English-language publications and spanned from the establishment of these databases to the most current data available.²²

Inclusion and Exclusion Criteria

The criteria for inclusion involved studies that specifically referenced Lysinibacillus species as a potential candidate for heavy metal bioremediation and explored their roles in the restoration of the ecosystem, improvement in soil nature and human health, as well as articles that examined the mechanisms of action and advantages of Lysinibacillus in removal heavy metal from soil. Conversely, the exclusion criteria eliminated studies unrelated to bioremediation, those that focused on different bacterial genera, and non-scholarly sources such as opinion articles and news reports.²³

Bibliometric Analysis

Data Extraction and Preparation: The data extracted comprised publication titles, authors, publication years, journal names, keywords, abstracts, citations, and institutional affiliations. This information was subsequently organised in a systematic format for further analysis.²⁴

Tools Used

VOSviewer was utilized to visualize and analyze co-authorship relationships, keyword co-occurrences, and citation networks, thereby facilitating the identification of thematic clusters and mapping the intellectual landscape of the field.²⁵ Dimension AI was employed to pinpoint key authors, institutions, and countries that significantly contribute to the research on Lysinibacillus species as potential candidates for heavy metal bioremediation and monitor citation metrics and emerging research trends.²⁶

Analysis Framework

The analytical approach included co-authorship analysis to assess collaborative networks among researchers and institutions, and citation analysis to evaluate the impact of the research (Zupic et al. 2015). The Dimension AI source library files were exported as CSV and RIS files and are listed below:

https://export.digital-science.com/2025-04-01/272248fb7d69547ac73191ecd0463df5/Dimensions-Publication-2025-04-01_09-42-53.csv.zip.

Data Compilation

Gene and species information was compiled through an extensive literature survey and validated using NCBI GenBank entries. The curated dataset included genes associated with heavy-metal resistance (such as merA, arsB, copA, czcC), organic pollutant degradation (xylE, katG, pnpA), and extracellular electron transfer (omcA, mtrA, pilA). All entries were organized into a structured Excel file to ensure consistency and accuracy.²⁷

Network Construction in Cytoscape

The curated interaction dataset was imported into Cytoscape v3.10 in the form of a node-edge table. Nodes represented either genes or microbial species, while edges denoted validated gene-species associations. Nodes were color-coded according to cluster memberships, and the overall network layout was optimized to enhance modular visibility and structural interpretation.²⁸

Cluster and Topology Analysis

ClusterMaker2 was employed to identify densely interconnected subgraphs within the network. Network Analyzer was then used to compute topological parameters, including centrality, node degree, and clustering coefficients. Key hub genes and species were identified based on degree values, and a bar graph depicting cluster size distribution was generated to enable comparative visualization of cluster densities.²⁹

 Rank Integration

The final ranking dataset was integrated to evaluate the relative importance of microbial species within the network. Lysinibacillus sphaericus appeared consistently within the top five species based on combined criteria such as gene abundance, network centrality, and functional relevance to heavy-metal detoxification.³⁰

Results

Starting from 2017, this research has focused on investigating a bibliometric study on Lysinibacillus used in heavy metal bioremediation.³¹ The years 2024, 2023, and 2022 have shown a notable rise in publications on this topic, with 859, 650, and 653, respectively.³² In terms of publication categories, the analysis has identified 2512 articles, 1006 book chapters, 583 edited books, 72 preprints, 28 monographs, and 5 proceedings represented in Fig.1.³³ Environmental science continues to dominate the field of research, with an impressive publication count of 1692, while biological science and microbiology follow just behind with 1679 and 1009 publications, respectively.³⁴ There are 11 research domains presented in Table 1 related to the Sustainable Development Goals based on publication metrics.

Table 1: Top 16 Research fields, Sustainable Development Goal based on publication, and Co-authorship analysis

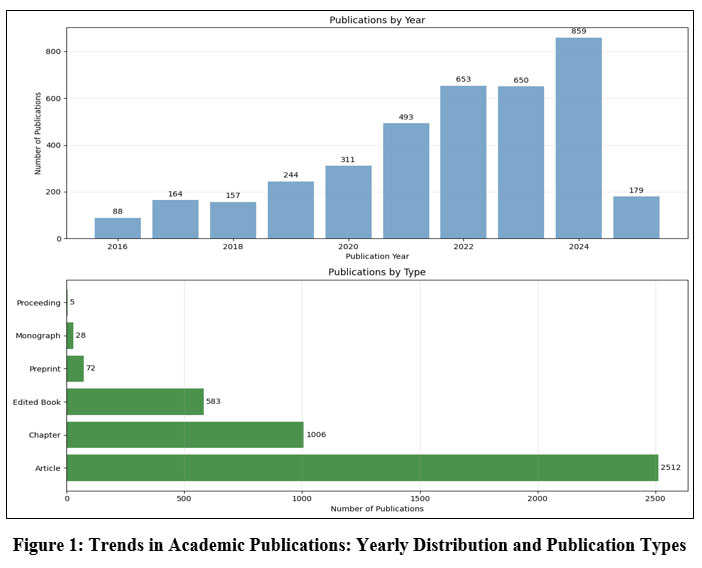

Figure 1: Trends in Academic Publications: Yearly Distribution and Publication Types.   Click here to view Figure

Environmental Science leads with 1692 publications, followed by Biological Science with 1679 publications. Microbiology has 1009 publications, Pollution and Contamination has 880 publications, and Engineering has 846 publications. Other fields are Agricultural, Veterinary and food science, Chemical Engineering, Environmental Biotechnology and Industrial Biotechnology.³⁵ The coauthorship analysis represented in the Fig.2. The analysis of co-authorship by country represented in Table 2 and Fig.3 demonstrates India’s leading position with 821 documents and 26661 citations, showcasing a strong international collaboration and impact. Following India, China has 581 documents and 18875 citations, emphasizing its significant research contribution. The United States ranks third with 132 documents and 5901 citations, highlighting its active involvement in global research networks.³⁶ Noteworthy countries like Saudi Arabia, Pakistan, and South Korea also show substantial participation in research activities, as indicated by their document numbers and citations.³⁷

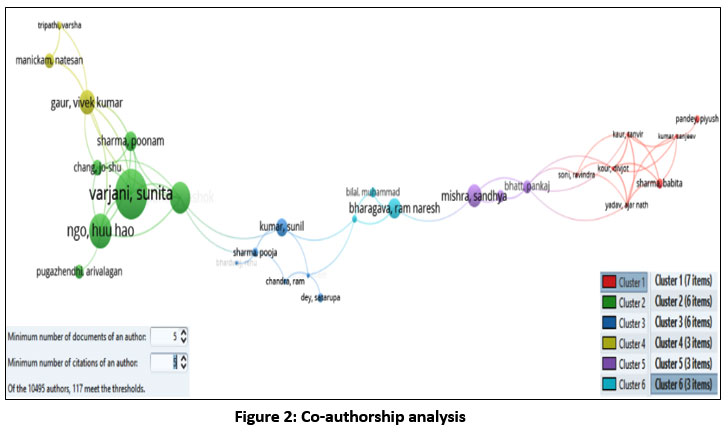

Figure 2: Co-authorship analysis   Click here to view Figure

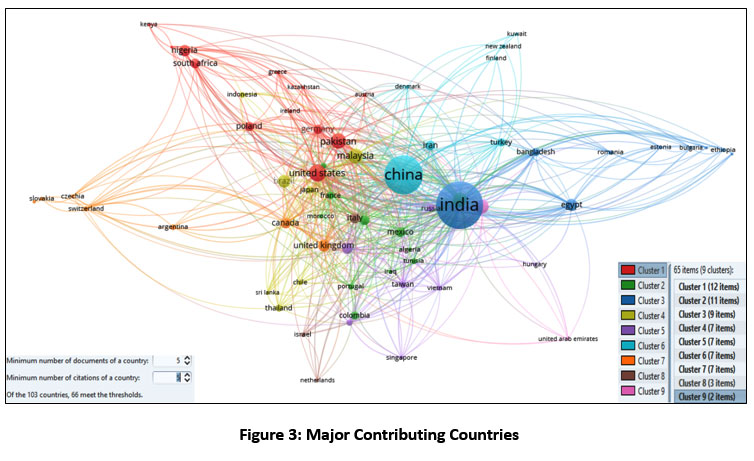

Figure 3: Major Contributing Countries    Click here to view Figure

Table 2: Major Contributing Countries and Journals

The analysis focuses on collaborative research through co-authorship, presented in Table3 and Fig. 4 with a focus on the organization as the unit of analysis.

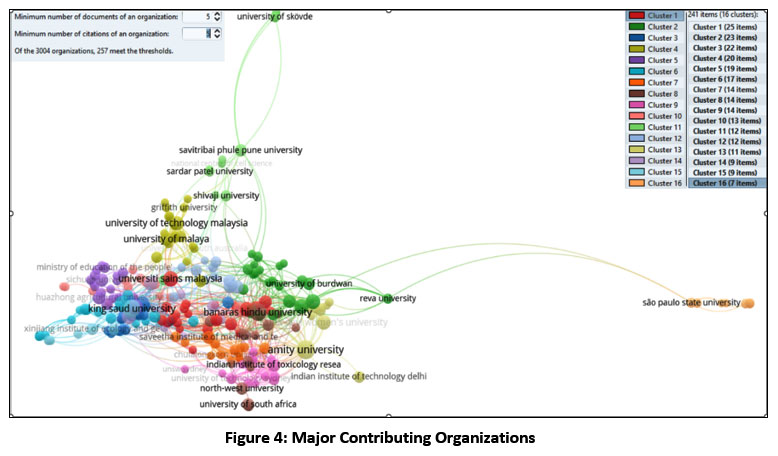

Figure 4: Major Contributing Organizations   Click here to view Figure

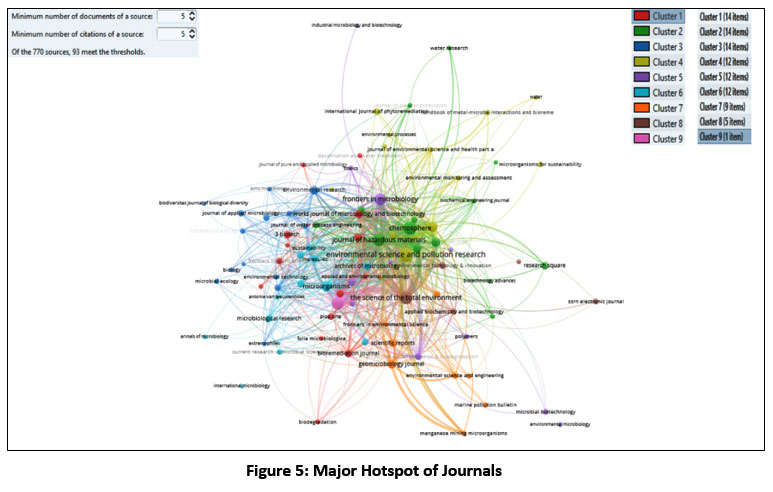

Figure 5: Major Hotspot of Journals   Click here to view Figure

Table 3: List of major contributing Organizations and Co-citation analysis

Amity University leads with 49 documents and 1691 citations, demonstrating high productivity and impact. Banaras Hindu University follows with 39 documents and 2047 citations. King Saud University has 39 documents with 966 citations, showing a strong citation-to-publication ratio.³⁸ The University of Punjab and the University of Chinese Academy have 27 and 26 documents, with citations of 583 and 867, respectively. Other significant contributors include Lovely Professional University and Academy of Scientific and Innovative Research, with 24 and 23 documents, respectively.³⁹

The citation analysis based on journal sources presented in Fig.5 reveals that “Environmental research and Pollution Research” is the most cited journal with 96 documents contributing to 2255 citations, indicating its prominence in the field. “Chemosphere” follows closely with 86 documents and 3447 citations, reflecting a high citation rate per document. “Science of the Total Environment” ranks third with 76 documents and 3308 citations.⁴⁰ Other significant journals include “Journal of Environmental Management,” “Journal of Hazardous Materials,” and “Frontiers in Microbiology,” each contributing to the research landscape with their respective document numbers and citations.⁴¹ India leads in document production with 821 documents and 26661 citations, followed by China with 581 documents and 18875 citations, and the US with 132 documents and 5901 citations.⁴² Pakistan stands out with 102 documents and 3262 citations. Other countries like Malaysia, Saudi Arabia, and South Korea also contribute significantly.⁴³ India, China and the US, dominate research output and citations. China’s strong infrastructure and international collaboration are evident, while the US maintains high-quality research. India strikes a balance between output and impact. Some countries with high output have lower citation counts. The varying citation counts for countries like Egypt, and Australia, relative to their document output, indicate that their research may be highly regarded or focused on influential topics.⁴⁴

In the network analysis using Cytoscape followed by NCBI represented in Fig.6, the constructed gene-species interaction network revealed a clear modular structure comprising four major functional clusters linked to heavy metal detoxification, electron transfer, aromatic compound degradation, and ancillary metabolic pathways. The heavy metal detoxification module was the largest and most interconnected, centred on the hub gene copA and linked to key metal-resistance genes such as arsB, arsC, czcC, merA, and chrA. This cluster also included several metal-tolerant microbes, Bacillus subtilis, Achromobacter xylosoxidans, Cupriavidus metallidurans, Enterobacter cloacae, and particularly Lysinibacillus sphaericus highlighting its functional dominance in metal-stressed environments.⁴⁵

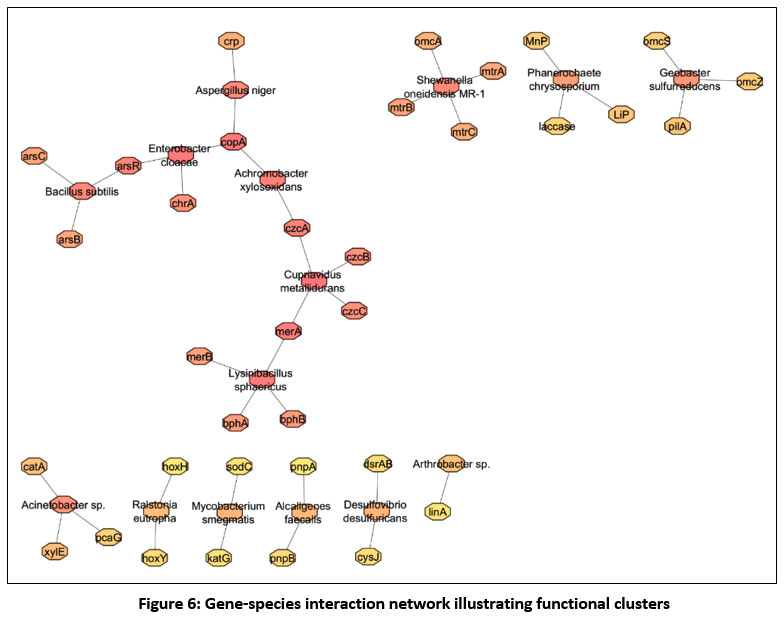

Figure 6: Gene-species interaction network illustrating functional clusters   Click here to view Figure

Lysinibacillus sphaericus emerged as a significant node within this module, showing strong associations with both mercury-reduction genes (merA, merB) and biphenyl-degradation genes (bphA, bphB). This dual connectivity positions it as a bridge between metal-resistance and organic-pollutant degradation pathways. Rank integration confirmed its importance, placing it among the top five species based on gene abundance, centrality, and detoxification relevance analysis.⁴⁶

A second prominent cluster consisted of extracellular-electron-transfer and ligninolytic genes such as omcA, omcS, mtrA, mtrB, mtrC, and pilA, associated with Shewanella oneidensis, Geobacter sulfurreducens, and Phanerochaete chrysosporium. This module represents organisms crucial for redox balancing and electron shuttle activity, key processes in metal reduction and wastewater treatment.⁴⁷

The third cluster comprised genes involved in aromatic and xenobiotic degradation, including xylE, katG, pnpA, pnpB, and foxY, linked to versatile degraders such as Acinetobacter, Ralstonia eutropha, Mycobacterium smegmatis, and Alcaligenes faecalis. This module complements the metal-resistance pathways, indicating potential for co-removal of mixed organic-metal pollutants.^{48, 49}

The final, smaller cluster included nodes with lower connectivity but still contributed additional metabolic functions that may support overall community resilience. Taken together, the network demonstrates that bioremediation efficiency relies on synergistic interactions across microbial groups rather than single-species performance. Lysinibacillus sphaericus, due to its central placement and multifunctional gene associations, stands out as a promising keystone organism for designing synthetic microbial consortia. The integration of network topology, functional clustering, and ranking scores provides a rational basis for selecting species combinations suited for complex contamination scenarios such as heavy-metal-rich soils, fly-ash environments, and industrial wastewater.

Discussion

The present study provides a comprehensive synthesis of global research trends and functional insights into Lysinibacillus-mediated heavy metal bioremediation by integrating bibliometric mapping with gene-species interaction network analysis. The sharp increase in publications after 2017 reflects a growing scientific recognition of microbial-based solutions as sustainable alternatives to conventional physicochemical remediation methods. This surge aligns with the global emphasis on eco-friendly technologies, circular bioeconomy concepts, and Sustainable Development Goals related to environmental protection and ecosystem restoration.

Bibliometric analysis revealed that environmental science, microbiology, and biological sciences dominate the research landscape, highlighting the inherently interdisciplinary nature of heavy metal bioremediation research. The strong representation of pollution, contamination, and engineering domains further indicates a shift from purely descriptive studies toward applied and solution-oriented research. India, China, and the United States emerged as leading contributors, reflecting differences in environmental pressures, industrialization patterns, and national research priorities. India’s prominent position can be attributed to extensive heavy metal contamination issues in soils and water bodies, coupled with strong academic interest in low-cost microbial remediation strategies. In contrast, China’s high citation impact suggests a focus on mechanistic and technologically advanced studies, while the United States maintains influence through high-quality, internationally collaborative research outputs

The dominance of journals such as Environmental Science and Pollution Research, Chemosphere, and Science of the Total Environment underscores the maturity of the field and confirms that Lysinibacillus-based remediation has transitioned from niche microbiological studies to mainstream environmental science discourse. These publication trends also indicate a gradual movement toward integrative studies combining genomics, systems biology, and environmental engineering.

The Cytoscape-based gene-species interaction network provides critical functional context to the bibliometric findings. The identification of a highly modular network architecture supports the concept that effective bioremediation is governed by cooperative microbial interactions rather than single-organism activity. Among all taxa analyzed, Lysinibacillus sphaericus consistently emerged as a central and multifunctional node, strongly associated with key heavy metal resistance genes such as merA, merB, arsB, and czcC. These genes are known to mediate mercury reduction, arsenic efflux, and multi-metal resistance, confirming the genetic basis of the organism’s high tolerance to metal-stressed environments

Notably, the dual association of L. sphaericus with both metal-detoxification genes and aromatic compound degradation genes (bphA, bphB) positions it as a critical functional bridge between inorganic and organic pollutant remediation pathways. This multifunctionality is particularly relevant for complex contamination scenarios such as fly ash-impacted soils, industrial effluents, and mixed waste streams, where metals coexist with persistent organic pollutants. The rank integration analysis further validates L. sphaericus as a keystone species based on its high network centrality, gene abundance, and detoxification relevance.

Beyond Lysinibacillus, the presence of distinct but interconnected clusters highlights the importance of functional complementarity in microbial remediation systems. The extracellular electron transfer cluster, dominated by Shewanella oneidensis and Geobacter sulfurreducens, emphasizes the role of redox-active microbes in metal reduction and electron shuttling processes. These organisms can enhance metal immobilization and transformation, particularly under anaerobic or low-oxygen conditions, thereby supporting the detoxification functions of Lysinibacillus species.

Similarly, the aromatic and xenobiotic degradation cluster, comprising genera such as Acinetobacter, Ralstonia, and Mycobacterium, indicates the system’s capacity for co-removal of organic contaminants. The coexistence of these clusters within the same network suggests that synthetic microbial consortia, rather than monocultures, are likely to achieve higher remediation efficiency, resilience, and adaptability under fluctuating environmental conditions

The integration of bibliometric trends with network topology provides a rational framework for evidence-based consortium design. While bibliometric analysis identifies influential species, genes, and research hotspots, network analysis elucidates functional dependencies and synergistic interactions. The central placement of L. sphaericus suggests that it can serve as a core organism around which auxiliary metal-reducing, electron-transferring, and organic-degrading microbes can be strategically assembled. Such consortia could be tailored for site-specific applications, including contaminated agricultural soils, industrial wastewater treatment, and fly ash-affected ecosystems.

Overall, the findings reinforce the notion that Lysinibacillus sphaericus is not merely a metal-tolerant bacterium but a systems-level contributor to complex remediation networks. Its multifunctional genetic repertoire and strong network connectivity make it an ideal candidate for next-generation bioremediation strategies that integrate microbiology, systems biology, and environmental engineering.

Conclusion

This study provides an integrated bibliometric and network-based evaluation of Lysinibacillus species in heavy-metal bioremediation. The bibliometric analysis reveals a sharp rise in global research output, led by India, China, and the United States, with strong contributions from major journals and institutions in environmental and biological sciences. These trends highlight growing interdisciplinary interest spanning microbiology, environmental science, and biotechnology. Complementing this, the Cytoscape gene-species network analysis identifies Lysinibacillus sphaericus as a central, multifunctional organism linked to key heavy-metal resistance genes (merA, merB, czcC) and aromatic-compound degradation genes (bphA, bphB). Its bridging position between metal-detoxification and organic-pollutant pathways underscores its suitability for multi-species remediation systems. The presence of supportive clusters involving electron-transfer microbes (Shewanella, Geobacter) and xenobiotic degraders (Acinetobacter, Ralstonia) further emphasizes the value of synergistic consortia. Overall, the combined findings establish L. sphaericus as a strong candidate for next-generation microbial consortia and provide a clear foundation for future applied and interdisciplinary research in bioremediation.

Acknowledgements

We are grateful to the Panskura Banamali College (Autonomous) Research Centre (P.B.C.R.C.) and the Department of Microbiology of Panskura Banamali College (Autonomous) for providing us with the basic research infrastructure, which has enabled us to conduct this work.

Funding Sources

The author(s) received no financial support for the research, authorship, and/or publication of this article.

Conflict of Interest

The authors do not have any conflict of interest.

Data Availability Statement

The raw data is available in the following data repository link: https://mega.nz/folder/eVVDRC7b#eXLralskEXUytahqb CKLew

Ethics Statement

This research did not involve human participants, animal subjects, or any material that requires ethical approval.

Informed Consent Statement

All the authors involved in the manuscript must assure their consent for the publication of the manuscript. Furthermore, individuals who provide writing assistance should be identified by the authors, and they must disclose the funding source for this assistance.

Clinical Trial Registration

This research does not involve any clinical trials.

Permission to reproduce material from other sources

Not Applicable

Author Contributions

Kajari Roy: Conceptualization, Methodology, Data Collection, Writing – Original Draft.

Nandan Bhattacharyya: Review, Editing and Supervision.
